N-C-J-3
Describe 描述
N 型连接器
N Connector
1. Electrical Performance
|
Parameter |
Value |
|
Article No.型号 |
N-J-C-3 |
|
Frequency range频率范围 |
DC ~6GHz |
|
Impedance特性阻抗 |
50Ω |
|
VSWR电压驻波比 |
≤1.3 |
|
Withstanding Voltage耐压 |
1500V |
|
Insulation resistance绝缘电阻 |
5000MΩ |
|
Connector Type接口 |
|
|
Standard引用标准 |
IEC60169-4 |
2. Mechanical Performance
|
Parameter |
Value |
|
Waterproof degree防水等级 |
NO |
|
Moisture resistance抗湿性 |
NO |
|
Mating cycles插拨次数 |
≥500 |
|

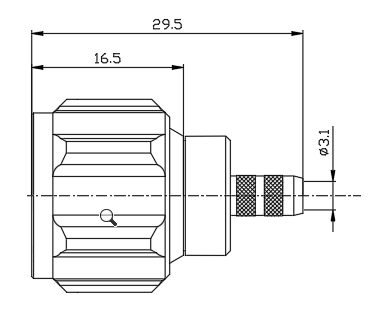

Outer Dimension外观尺寸 |
29.5*15.8mm |
3. Environment Performance
|
Parameter |
Value |
Operating temperature range
工作温度 |
-65℃～+165℃ |
Storage temperature range
储存温度 |
-30℃～+60℃ |
4. Material &Plating
|
Connector parts |
Material |
Plating |
|
中心导体 |
Brass |
镀B体育官方APP下载合金 |
|
Outer conductor外导体 |
Brass |
镀B体育官方APP下载合金 |
|
Dielectric介质 |
PTFE |
/ |
|
Salt Mist盐雾 |
|
96H |
5. Packing
|
Standard包装要求 |
3600pc/plastic bag in separate carton |
Remark：Dimensions are in mm with tolerance of ±2%.
